φ435mm Reinforcing End Cap

Brand Name : JINHAIHU

Model Number : XGY

Certification : ISO9001

Place of Origin : BEIJING, CHINA

MOQ : 1 set

Payment Terms : T/T, L/C, Western Union, MoneyGram, D/P, D/A

Supply Ability : 50 sets per month

Delivery Time : 15 work days

Packaging Details : Standard export wooden cases

Product name : Φ435mm High pressure reinforcing end caps

Test specimen : Plastic pipes like PVC, PE, PPR, ABS, etc

Material : 304# Stainless steel or carbon steel

Technics : Casting

Shape : Half round pot

Type : Plug

Model : φ 435mm

Contact Now

Φ435mm High pressure reinforcing end caps


Summary:

The end caps are made to seal the plastic pipes such as PVC, PE, PPR, ABS, etc when doing pipe inner pressure test.

It goes well with our XGY Pipe Hydrostatic Testing Machine as well as your own model.

End caps

Our annual production capacity of end caps can reach tens of thousand sets. The material of our end caps is 45# carbon steel or 304# stainless steel. We have several types of end caps, like end seal, external seal and double seal, which fit different diameters of pipes. We can also manufacture special end caps according to your test requirements.


Models:

For metric pipes:

φ10, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ75, φ90, φ110, φ125, φ140, φ160, φ180, φ200, φ225, φ250, φ280, φ315, φ355, φ400, φ450, φ500, φ560, φ630, φ710, φ800, φ900, φ1000, φ1100, φ1200, φ1500, φ2000mm.

For inch pipes:

1/2", 3/4", 1", 11/4”, 11/2”, 2”, 21/2”, 3", 4", 6", 8", 10", 12", 14", 16", 18", 20", 22", 24", etc.


Meet standards:

ASTM D1598-2004Pipe, Plastic, Under Constant Internal Pressure, Time-to-Failure of (No S/S Document)
ASTMD1599Standard Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings
ASTM D1599Standard Test Method forResistance to Short-Time Hydraulic Pressure of PlasticPipe, Tubing, and Fittings1
ISO1167Thermoplastic pipes, joints and assemblies for fluid transport. Determination of internal pressure resistance
ISO13479Determination of resistance of polyolefin pipes for the conveyance of fluids to crack propagation
ISO9080Plastics piping and ducting systems - Determination of the long-term hydrostatic strength of thermoplastics materials in pipe form by extrapolation (ISO9080, Ed. 1.0 (2003) MOD)
DIN EN 921 (1995-01)Thermoplastics pipes - Determination of resistance to internal pressure at constant temperature

Design feature:

1.Include bolt, O ring ,vent valve etc all assembly complete(Interface thread size can be customized).

2.Fixture structure:

Half round pot form,easy fit out , no leakage, convenient operation.

3.Equiped with reinforcement structure.


Technical parameter:

Max. Diameter (mm)φ435
High of one end (mm)385
Wright of one end (KG)90
O ring size (mm)φ430*16
Max.pressure (Mpa)10
Nominal value (Mpa)7

Configuration

1. The bolts 1 set

2. Vent valve 1 piece

3. Connector 1 piece

4. Seal rings 1 set



Product Tags:

435mm reinforcing end cap



PPR Pipe End Caps



ASTM D1599 reinforcing end cap

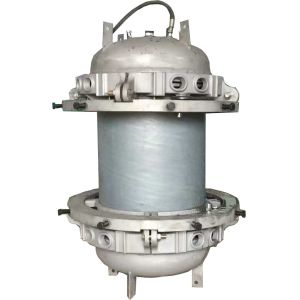

Buy cheap φ435mm Reinforcing End Cap product
